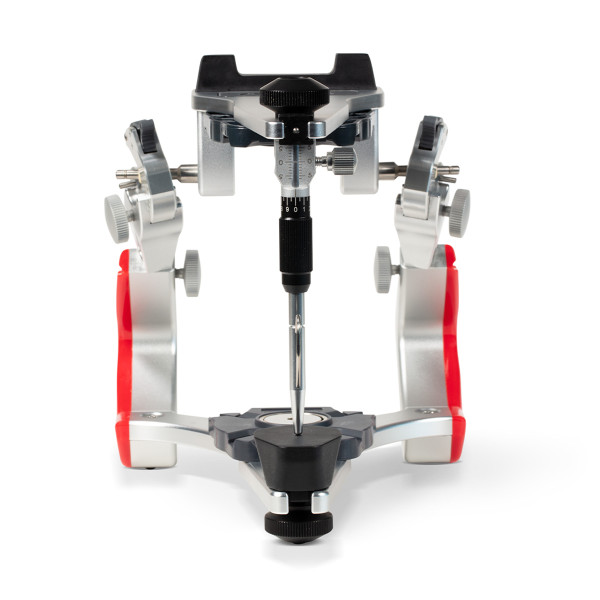

Arto XP 3 / XP 3s

The partially adjustable model from the new Arto XP articulator series.
Depending on the configuration with an immediate side shift function (ISS):

- Pleasant handling due to ergonomic design
- Stable and durable all-aluminum construction
- Three non-tilting working positions possible
- Practical centric quick-release fasteners
- Micro-adjustable guide pin (Full version only)
- Rich accessories (only with the full version)
- Artex¹ compatible

The features in detail:
Construction: Non Arcon
Overall height: 116 / 126 mm
Bennett angle: 0° - 20° (adjustable)
Condyle inclination: -15° - +60° (adjustable)
Arbitrary pins: for direct facebow adaptation
Table support: 45° (integrated)
Magnetic panel system: Adesso Multisplit® Junior
(screw version, pre-assembled)
Anterior guide pin: +/- 6 mm
(micro-adjustable only with the full version!)
Anterior guidance plate: 0° (installed)

Accessories included:
Anterior guidance plate: 30°
2 pcs. Connect® mounting plates for Adesso Split®
(Full version only)
2 pcs. Connect® mounting plates for Splitex¹
(Full version only)
Transport case XP
(Full version only)

Compatible with the following articulators:
Amann Girrbach Artex¹ (corresponds to model CT, depending on version with additional immediate side shift function!)
